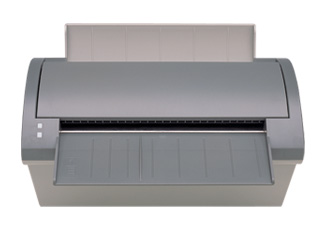

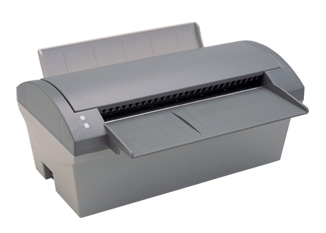

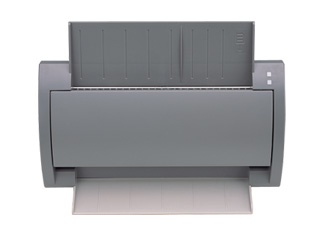

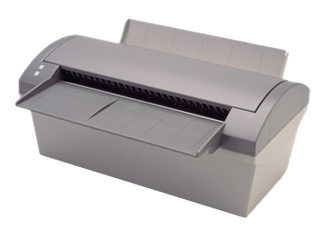

HSIT-200B

Home  > Products > A4 Document Reader




ModelHSIT-200B

Specifications Speed : Max. 480 mm/sec
Resolution : 200dpi
Color : 24Bit Color, 1, 4, 8 Bit Gray Color
File Format : BMP, RAW, TIF, JPG

ApplicationsReadable OCR, BARCODE(1D, 2D)

Feature
Barcode Document Reader & Thermal Endorser


  • Built-in Thermal Endorser
  • High Speed 200dpi Color
  • Excellent Cash & Ticket Processing System
  • Readable OCR, BARCODE (1D, 2D)
  • Available BMP, RAW, TIF, JPG File Format
  • USB 2.0 Interface

Specifications

  • Paper Size : Max. 216 x 330 mm
  • Resolution : 200dpi RGB Color
  • Speed : Max. 480 mm/sec
  • Color : 24 Bit Color, 1, 4, 8 Bit Gray Color
  • File Format : BMP, RAW, TIF, JPG
  • Interface : USB 2.0
  • Power :DC 24V, 2.5A
  • Dimention : 300W x 180D x 225H mm
  • Weight : Approx. 3.1Kg

Endorser (Option)

  • Print Type : Thermal
  • Resolution : 200dpi, 8 dot/mm
  • Print Width : 24 mm

Barcode

  • 1D : Code39, Code128, I2of5, UPC/EAN, Codebar, Code32, Code93
  • 2D : PDF417, QR, DATA Matrix

Requirements

  • OS : Windows XP, Vista, 7, 8 (32/64bit) (Option - Linux)
  • CPU : Min. Pentium Ⅲ 1Ghz
  • RAM : Min. 256MB
